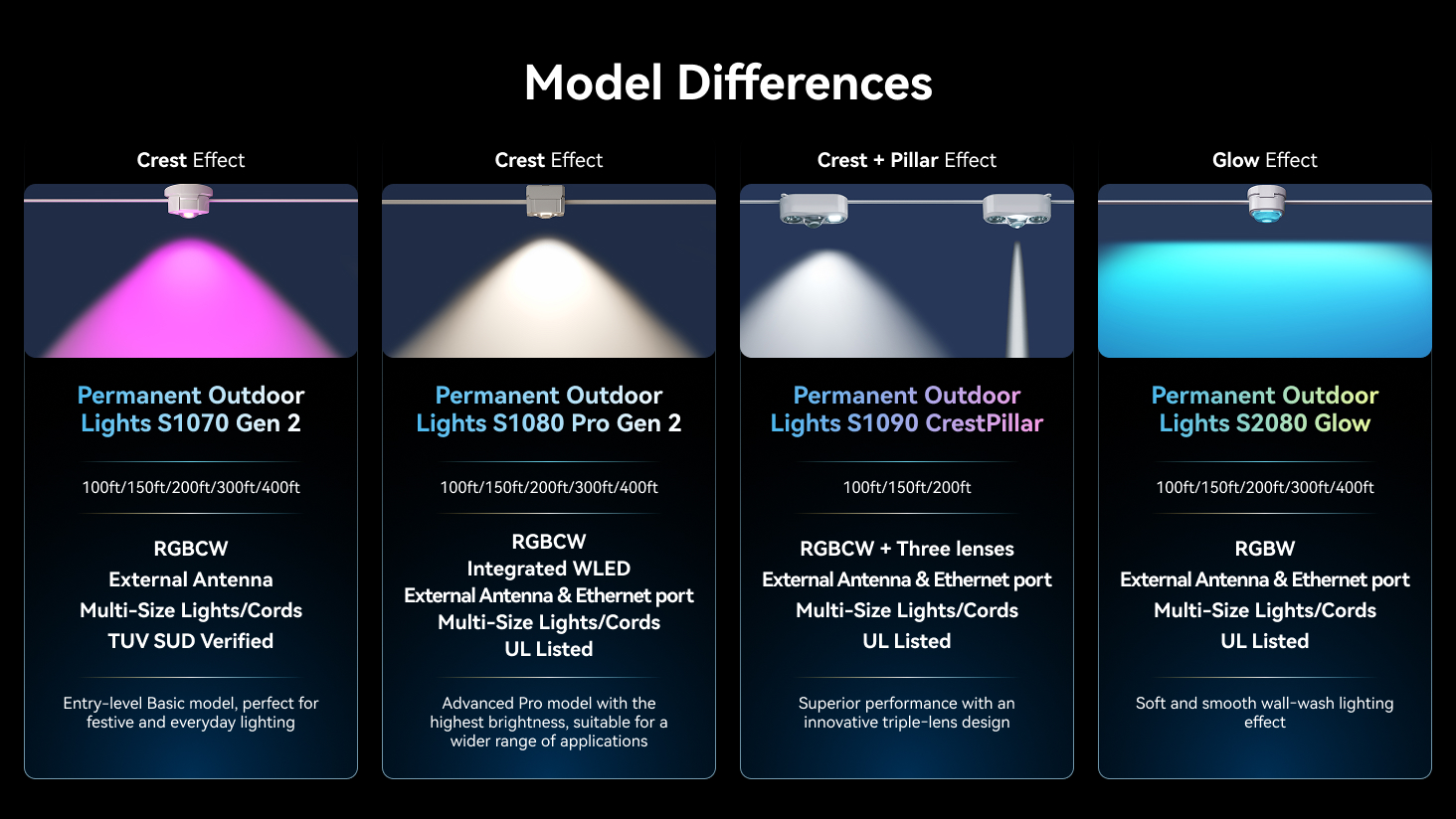

Model Differences 2026

Overview

ASAHOM’s permanent outdoor lights lineup currently includes the S1070, S1080, S1090 series, with the S2080 series coming soon. All four share:

Dual-output controller
50,000-hour lifespan
Withstands temperatures from -22°F to 113°F, IP67 waterproof
Up to 800 ft (approx. 244 m) maximum connection length

Their differences lie mainly in light pattern and brightness performance.

Model series Comparison

Model	Light Pattern	Brightness	Ideal Use
S1070	Crest	Standard	Everyday home decoration
S1080	Crest	High brightness	Stronger visual impact on eaves/facades
S1090	Crest+Pillar	High brightness	More layered, immersive lighting effects
S2080 (Coming Soon)	Glow	High brightness	Soft and smooth wall‑wash effect

Special Note

S1080 comes with integrated WLED:
Beyond higher brightness, it unlocks a powerful control experience, including:

Hundreds of preset effects and palettes
Zone control and custom scenes
Audio-reactive
Open-source ecosystem compatibility with community add-ons

This makes the S1080 far more versatile and customizable compared to the entry-level S1070.

Appearance Comparison

Light effects Comparison

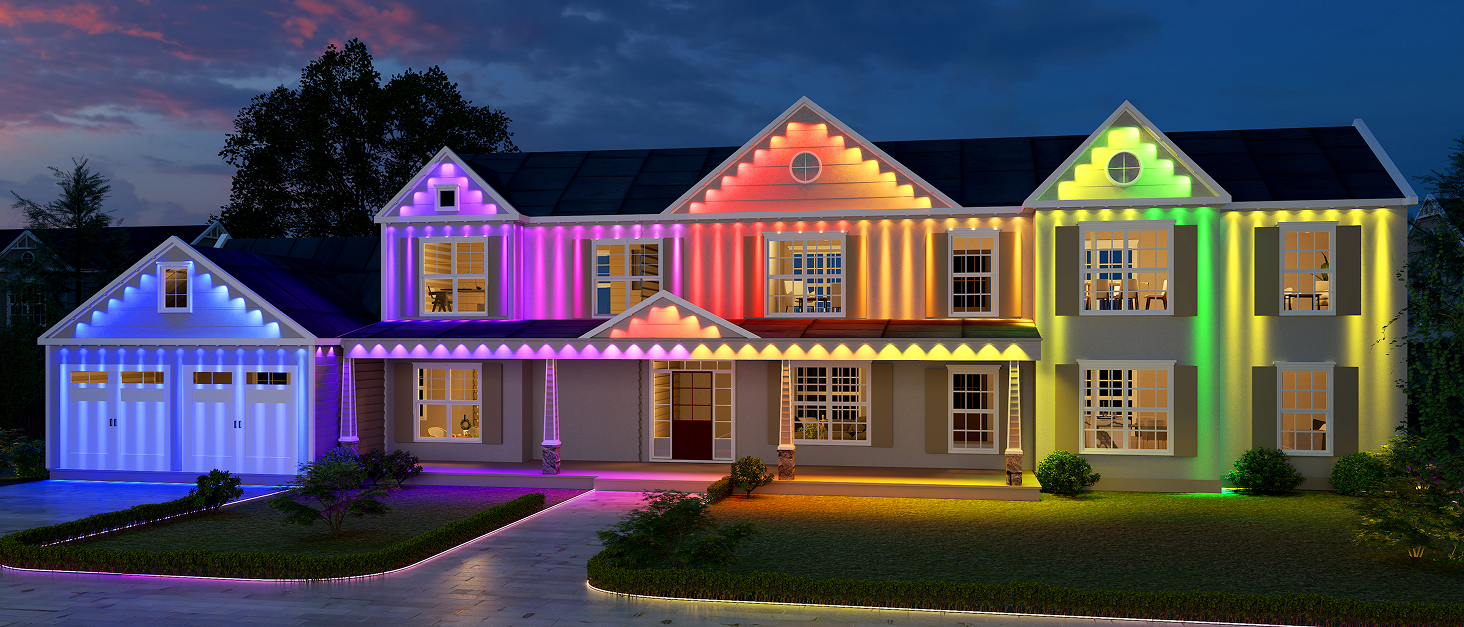

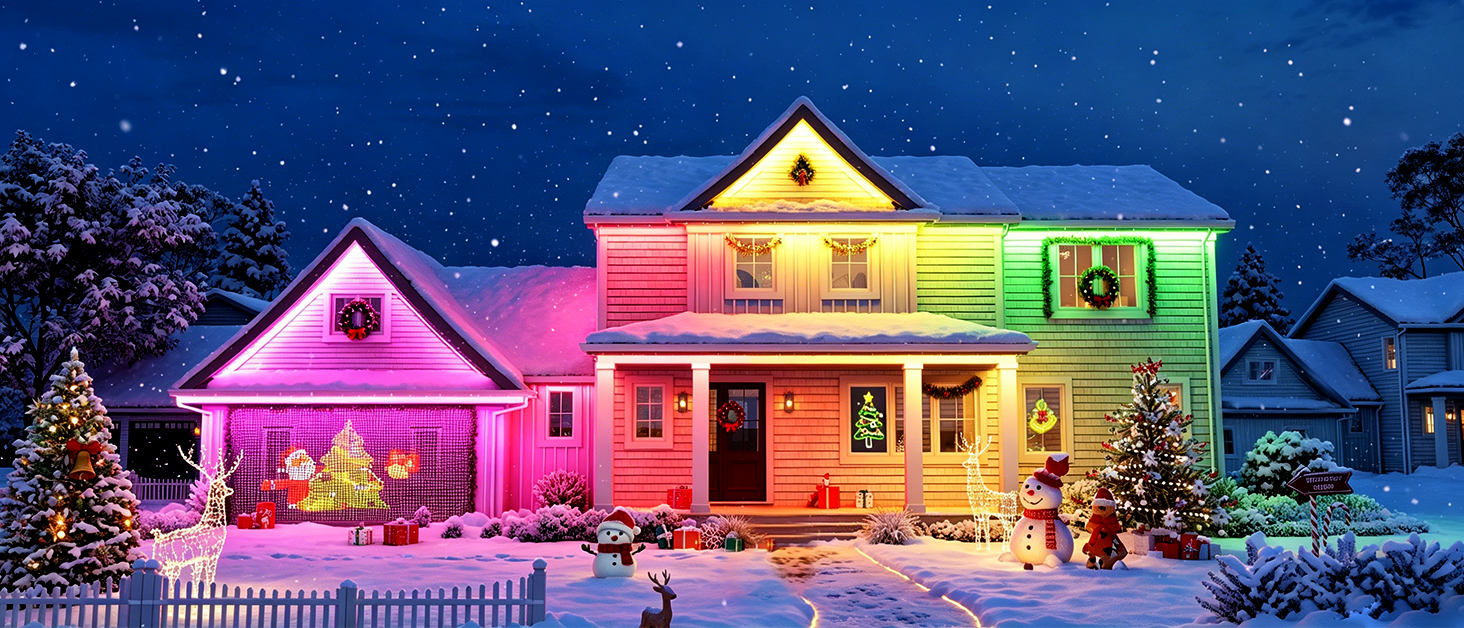

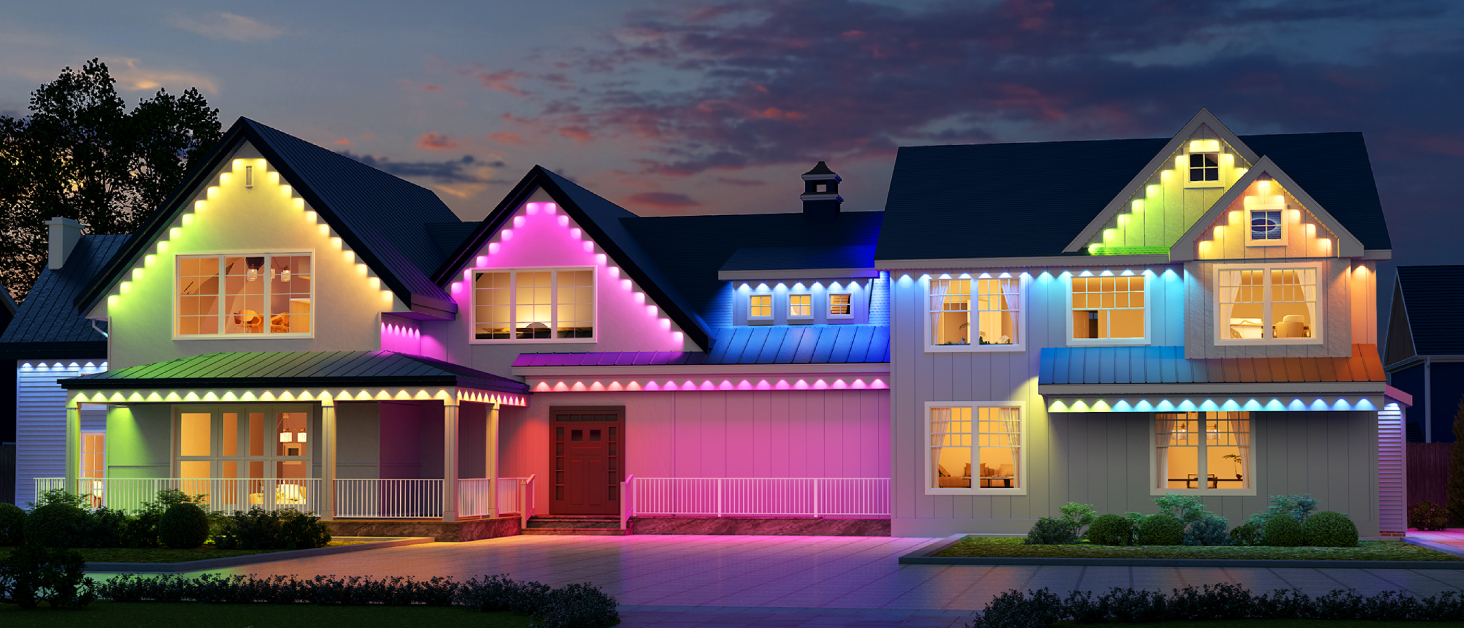

Scene display

S1070/S1080 Crest Effect

S1090 Crest+Pillar Effect

S2080 Glow Effect

S1070 Series Gen2 Package Contents

Model	S107A	S107B	S107C	S107D	S107E	S107F
Power Adapter	1	1	1	1	2	2
6ft Power extension cord	1	1	1	1	2	2
Controller	1	1	1	1	1	1
5m (12 LEDs) string section	3	6	7	9	14	17
2.5m (6 LEDs) string section	×	×	3	3	5	9
1.25m (3 LEDs) string section	×	×	1	5	5	8
0.42m (1 LED) string section	×	×	3	3	3	6
12ft Light string extension cord	×	×	1	1	2	2
6ft Light string extension cord	2	2	1	2	2	2
3ft Light string extension cord	×	×	2	3	3	3
1ft Light string extension cord	×	×	×	3	3	3
Power injection T-connector	×	×	×	×	1	1
T-splitter	×	×	×	1	1	2
Wire Clip	15	30	30	30	60	60
Expansion Screw Kit	1	1	1	2	5	5
Screw Pack	5	9	12	15	24	30
Adhesive Backing	6	6	9	12	18	24
Waterproof junction box	1	2	3	4	6	8
Spare Sealing Ring	3	6	9	12	18	24
End Cap	2	2	4	6	6	6
Mounting Ruler	1	1	1	1	1	1

S1080 Series Gen2 Package Contents

Model	S108A	S108B	S108C	S108D	S108E	S108F
Power Adapter	1	1	1	1	2	2
6ft Power extension cord	1	1	1	1	2	2
Controller	1	1	1	1	1	1
5m (12 LEDs) string section	3	4	7	9	14	17
2.5m (6 LEDs) string section	×	3	3	3	5	9
1.25m (3 LEDs) string section	×	1	1	5	5	8
0.42m (1 LED) string section	×	3	3	3	3	6
12ft Light string extension cord	×	×	1	1	2	2
6ft Light string extension cord	2	1	1	2	2	2
3ft Light string extension cord	×	2	2	3	3	3
1ft Light string extension cord	×	×	×	3	3	3
Power injection T-connector	×	×	×	×	1	1
Ethernet cable	1	1	1	1	1	1
T-splitter	×	×	×	1	1	2
Wire Clip	15	30	30	30	60	60
Expansion Screw Kit	1	1	1	2	5	5
Screw Pack	5	9	12	15	24	30
Adhesive Backing	6	6	9	12	18	24
Waterproof junction box	1	2	3	4	6	8
Spare Sealing Ring	3	6	9	12	18	24
End Cap	2	2	4	6	6	6
Mounting Ruler	1	1	1	1	1	1

S1090 Series Package Contents

Model	S109A	S109B	S109C	S109D	S109E	S109F
Power Adapter	1	1	1	1	2	2
6ft Power extension cord	1	1	1	1	2	2
Controller	1	1	1	1	1	1
5m (12 LEDs) string section	3	4	6	8	12	16
2.5m (6 LEDs) string section	×	3	5	6	8	12
0.42m (1 LED) string section	×	6	6	12	24	24
6ft Light string extension cord	2	1	3	4	6	6
3ft Light string extension cord	×	2	1	2	2	2
1ft Light string extension cord	×	×	3	6	6	6
Power injection T-connector	×	×	×	×	1	1
T-splitter	×	×	×	1	1	2
Wire Clip	15	30	30	30	60	60
Screw Pack	5	9	12	15	24	30
Adhesive Backing	6	6	9	12	18	24
Waterproof junction box	1	2	3	4	6	8
End Cap	2	2	4	6	6	6
Mounting Ruler	1	1	1	1	1	1

S2080 Series Package Contents

Model	S208A	S208B	S208C	S208D	S208E	S208F
Power Adapter	1	1	1	1	2	2
6ft Power extension cord	1	1	1	1	2	2
Controller	1	1	1	1	1	1
5m (14 LEDs) string section	3	4	7	9	14	17
2.5m (7 LEDs) string section	×	3	3	3	5	19
1.07m (3 LEDs) string section	×	1	1	5	5	8
0.36m (1 LED) string section	×	3	3	3	3	6
12ft Light string extension cord	×	×	1	1	2	2
6ft Light string extension cord	2	1	1	2	2	2
3ft Light string extension cord	×	2	2	3	3	3
1ft Light string extension cord	×	×	×	3	3	3
Power injection T-connector	×	×	×	×	1	1
Ethernet cable	1	1	1	1	1	1
T-splitter	×	×	×	1	1	2
Wire Clip	15	30	30	30	60	60
Expansion Screw Kit	1	1	1	2	5	5
Screw Pack	5	9	12	15	24	30
Adhesive Backing	6	6	9	12	18	24
Waterproof junction box	1	2	3	4	6	8
Spare Sealing Ring	3	6	9	12	18	24
End Cap	2	2	4	6	6	6
Mounting Ruler	1	1	1	1	1	1

Discontinued Models

We previously released the S1040, S1050, and S1060 series.

These models are now discontinued and will no longer be sold or updated.
Existing users may continue to use them, but after-sales service is limited to the warranty period.
For new installations, we recommend the S1070, S1080, or the upcoming S1090, S2080 series, which offer enhanced brightness, improved lighting effects, and long-term support.

Updated on 17 Sep 2026
