Wire Clip / Screw Pack

What Are They?

Wire Clip

Small plastic clips with adhesive backing, designed to hold extension cords or corner wires securely against the mounting surface.
Use Case:

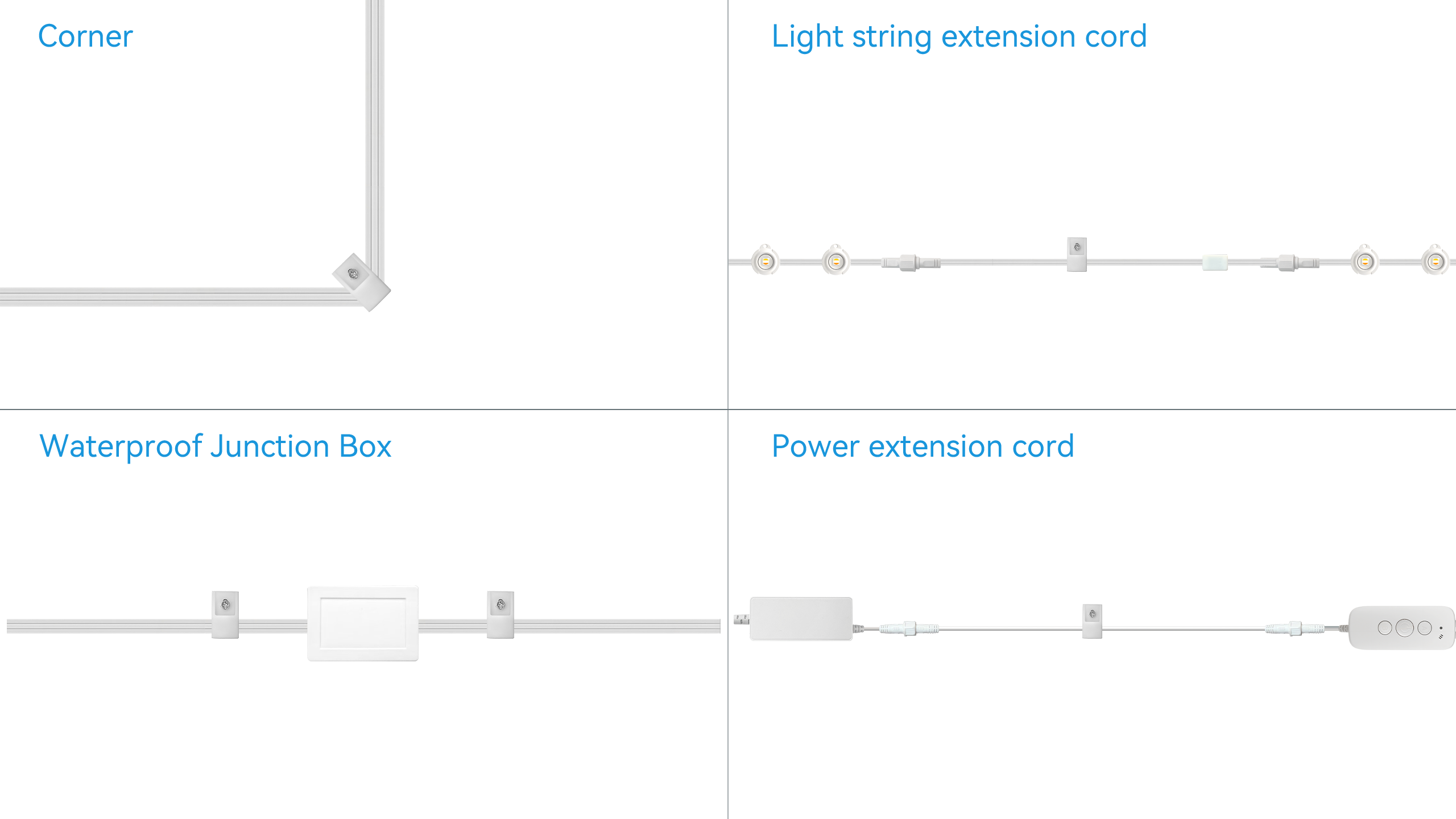

  • Mainly used for fixing extension cords or wires at corners to keep them neat and prevent sagging.
  • Must be used together with screws for proper outdoor stability.

Screw Pack

A set of screws provided to secure each light base directly to the mounting surface for long-term outdoor durability.
Use Case:
  • Essential for fixing each light base firmly in place.
  • Also used in combination with wire clips to secure extension cords.

How to Install

Wire Clip Installation

  1. Clean the mounting surface (make sure it is dry and dust-free).
  2. Peel off the adhesive backing from the wire clip.
  3. Stick the wire clip firmly along the planned route.
  4. Press and hold for at least 8 seconds to ensure proper adhesion.
  5. Insert a screw through the hole in the wire clip and tighten it with a screwdriver. This is required for outdoor installations to ensure long-term stability.
Note: For outdoor use, always secure wire clips with screws to prevent loosening due to weather conditions.

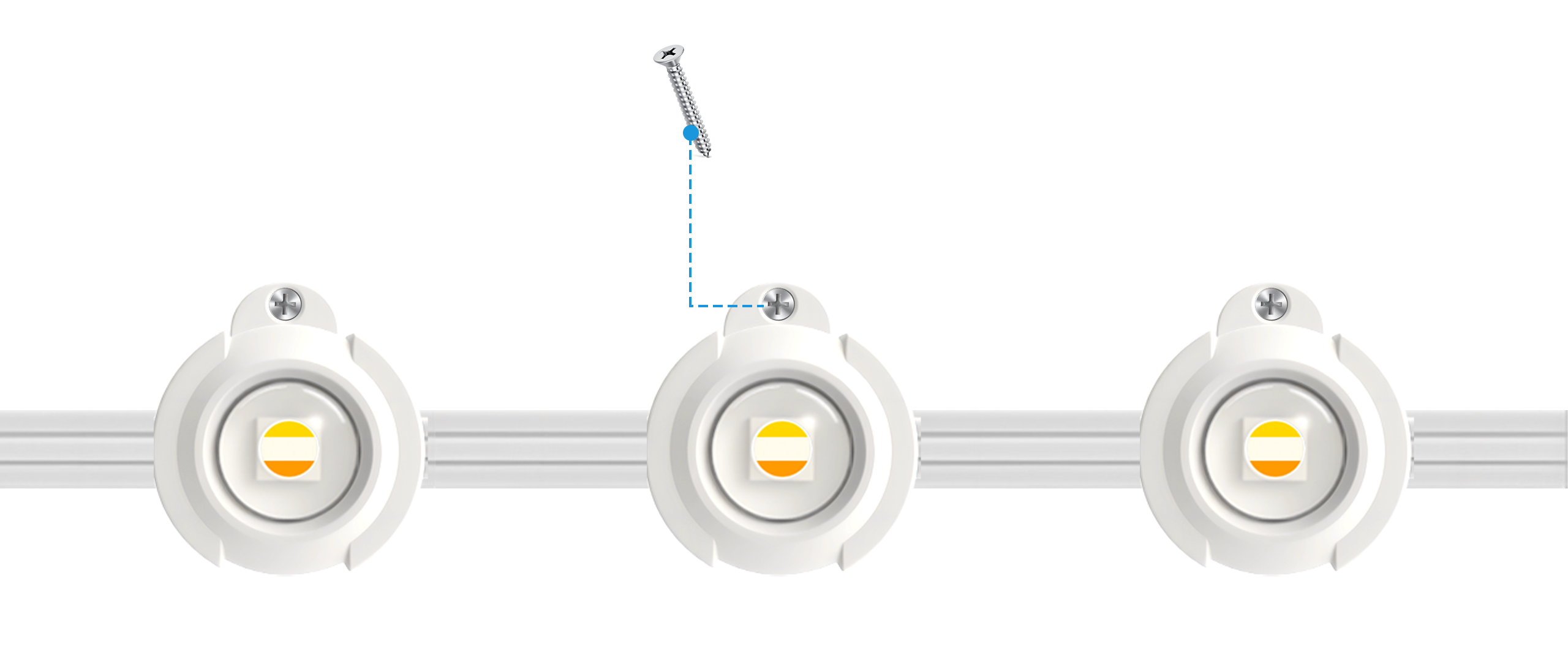

Screw Pack Installation

  1. Align the pre-drilled hole in each light base.
  2. Insert and tighten the screw with a screwdriver.
  3. Ensure all lights are firmly attached to the surface.

FAQs

Q1: Do I need to use both wire clips and screws?
A1: Yes. Wire clips help during initial installation, but screws are essential for permanent outdoor stability.

Q2: Can I use third-party screws or clips?
A2: Not recommended. The provided accessories are designed for optimal fit and waterproofing.

Q3: How many wire clips and screws come with my product?
A3: See the Package Contents table in your user manual for details.
