Track-Mount Kit
What is the Track‑Mount Kit?
The Track‑Mount Kit is a specially designed accessory for ASAHOM permanent outdoor lights, enabling a clean, professional, and durable installation along eaves, soffits, or straight edges. By housing your light strings in sturdy tracks, it enhances both aesthetics and protection.
Compatibility
This track kit is compatible with the following light models:
-
Govee Permanent Outdoor Lights (1st Generation, 2nd Generation, Elite)
-
ASAHOM S1080 Series Permanent Outdoor Lights
⚠️ Please make sure to check the model of your lights before installation. Using the track kit with non-compatible products may result in improper fit or damage, which is not covered under warranty.
Key Features
-
Professional Finish – Hides wires and bases for a seamless look
-
Enhanced Protection – Shields lights from physical impact and weather exposure
-
Modular Design – Tracks can be cut or joined to fit any length
-
Quick Installation – Lights use adhesive backing for secure placement
Installation Guide
What’s in the Box
Track Sections (1.2 m) ×3
Track Sections (1.2 m with 3 holes) ×16
Track Sections (0.8 m with 2 holes) ×10
Track Sections (0.4 m with 1 hole) ×4
Outside Elbows ×4
Inside Elbows ×4
T-Connectors ×4
Flat Elbows ×4
Couplings ×4
End Caps ×4
Screws Pack ×8
Extra Lamp Holders ×3
User Manual ×1
Step-by-Step Installation
Step1-Prepare the Mounting Surface
-
Ensure the eave or surface is clean, dry, and flat.

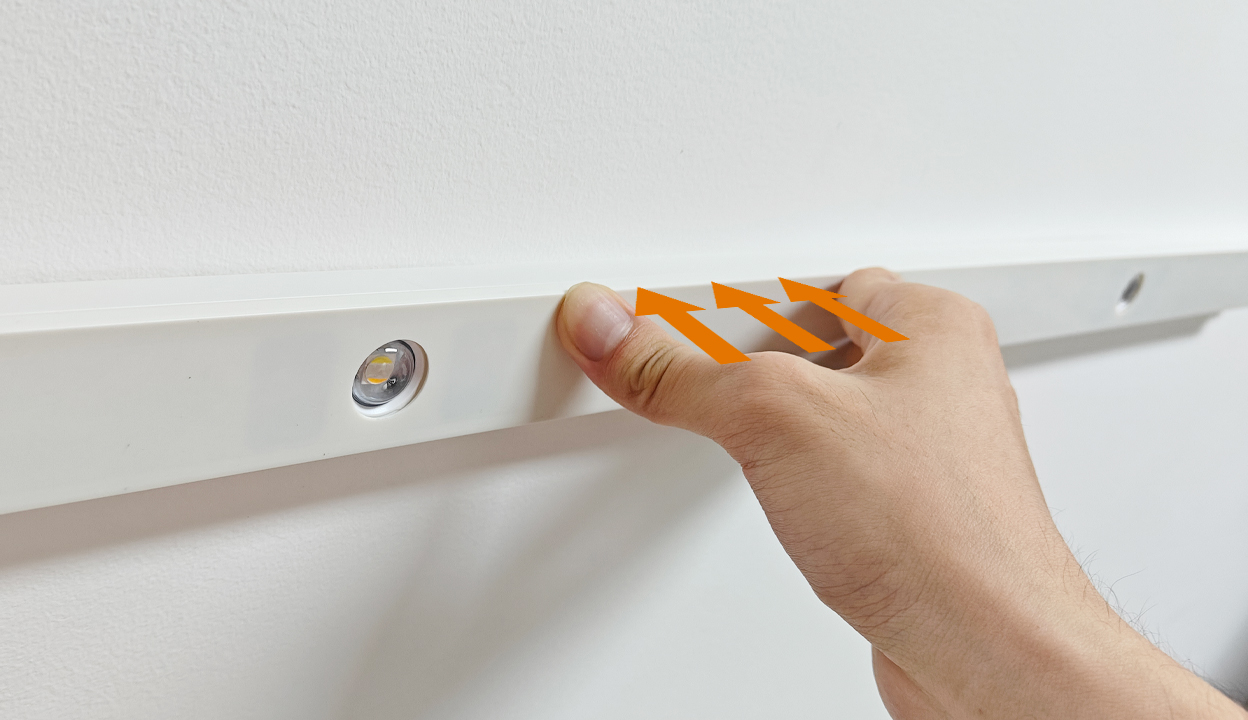

Step2-Slide to Separate the Track Covers

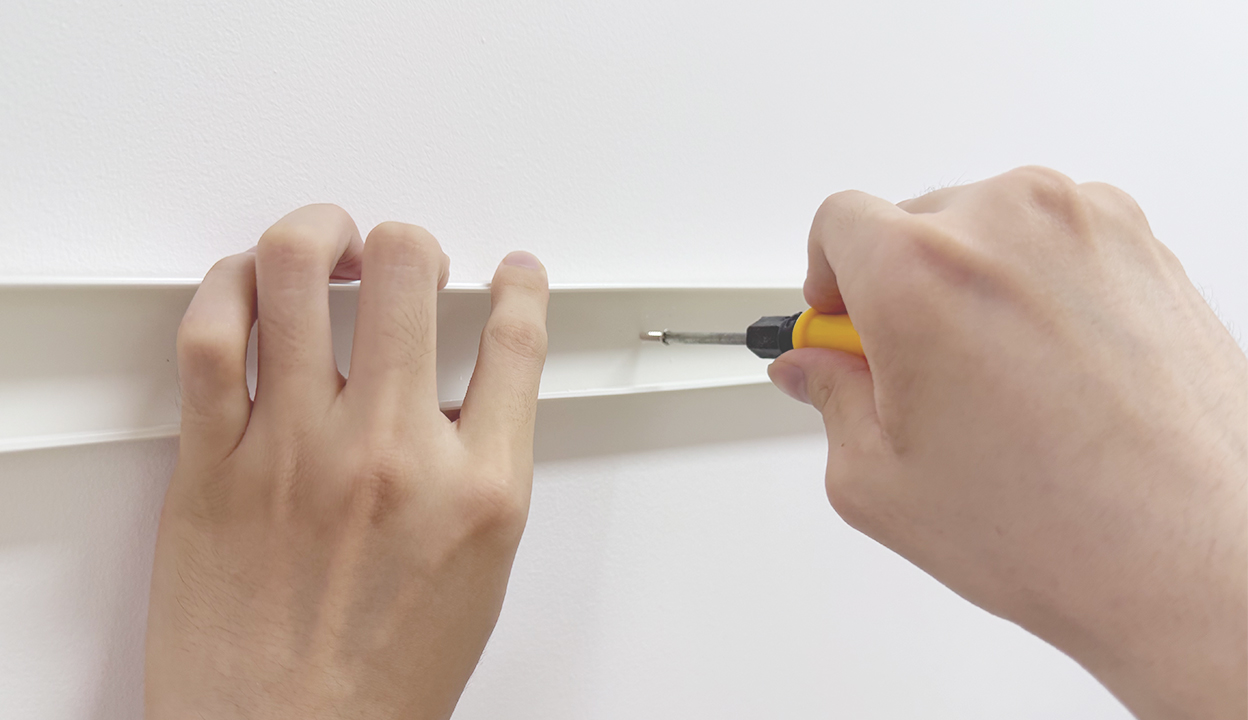

Step3-Position and Mount the Track Base
-
Align the track bases along your planned installation path.
-
Secure them firmly using the provided screws for long-term stability.

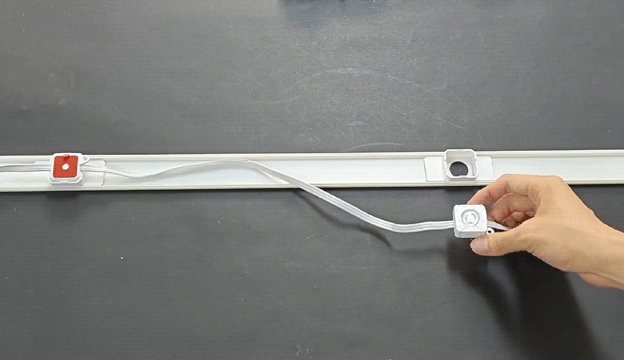

Step4-Attach the Lights to the Top Cover
Step5-Snap the Top Cover onto the Base
-
Place the assembled top cover (with lights) over the track base.
-
Snap it into place until you hear a click sound.
Recommended Usage Scenarios
-
Long straight runs along eaves or fences
-
Modern homes seeking a minimalist aesthetic
-
Areas prone to wind, debris, or physical impact
FAQs
Q1: Is the Track‑Mount Kit waterproof?
A1: Yes. It provides extra shielding, but the lights themselves remain IP67 rated.
Q2: Can I cut the tracks to fit shorter runs?
A2: Yes. Tracks are modular and can be cut with standard tools.
Q3: Does it fit all ASAHOM models?
A3: No. Check your product series compatibility (currently supports S1080).
Q4: Do I need special tools for installation?
A4: No. A drill and screwdriver are sufficient for most installations.
