Light string extension cord

Updated on Sep 02, 2025

The Light String Extension Cord is designed to extend the connection distance between your light strings and the controller or other light strings, making installation more flexible.

At a Glance

Compatibility

Important: Do not use this extension cord with other brands or models, as it may cause malfunction or damage.
Brand
Model
ASAHOM
S1070
S1080
S1090
Govee
Permanent Outdoor Lights 2
Permanent Outdoor Lights Elite

Installation Instructions

1. Disconnect all power supplies to the light string.

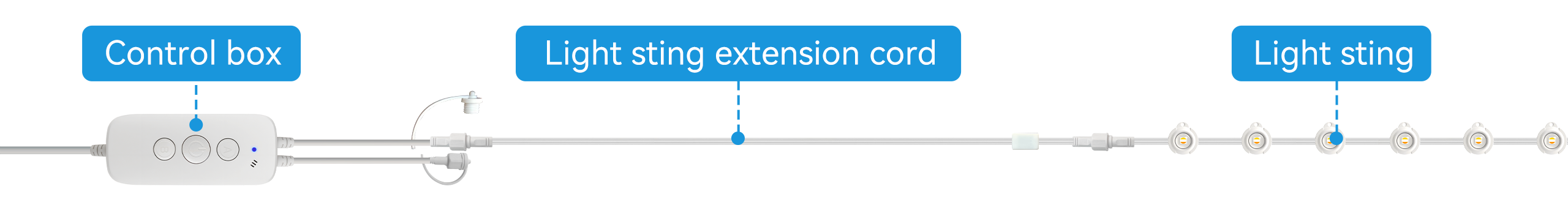

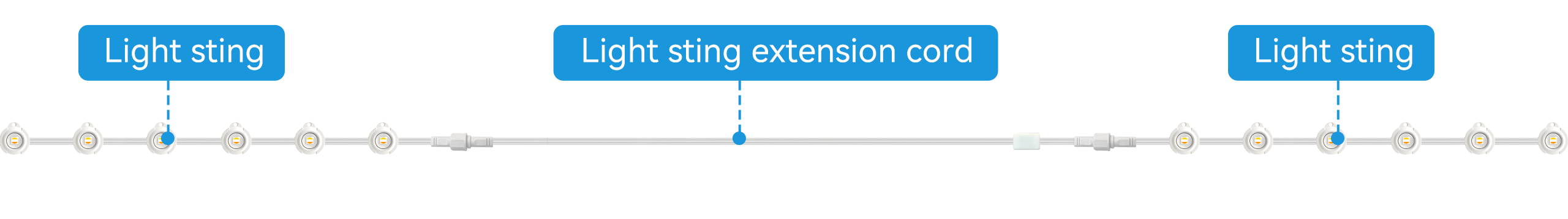

2. Connect one end of the extension cord to the controller or the previous light string, and the other end to the next light string.
3. Ensure the connectors are properly aligned and fully inserted, and tighten the waterproof nut securely.
4. After all connections are complete, turn on the power and test whether the light string is working properly.

Notes

1. For each power supply, it is recommended that the total extension cord length between the light strings does not exceed 36 feet (36ft).
2. If you need to cut the extension cord, make sure to keep the signal amplifier in the installed wiring.
This ensures stable signal transmission and proper lighting performance

FAQs

A1: What is the maximum total length of extension cords that can be connected?
Q1: It is recommended that the total length of all extension cords connected to a single power supply should not exceed 36 ft (about 11 m) to ensure stable signal and power supply. Exceeding this length may result in reduced brightness or unstable signal at the end of the light string.

A2: Will using multiple extension cords affect the brightness or effects of the lights?
Q2: Excessive extension cord length may cause voltage drop, affecting the brightness and stability of end LEDs. Choose lengths wisely based on installation needs.

A3: How do I correctly connect the extension cord with the light string or controller?

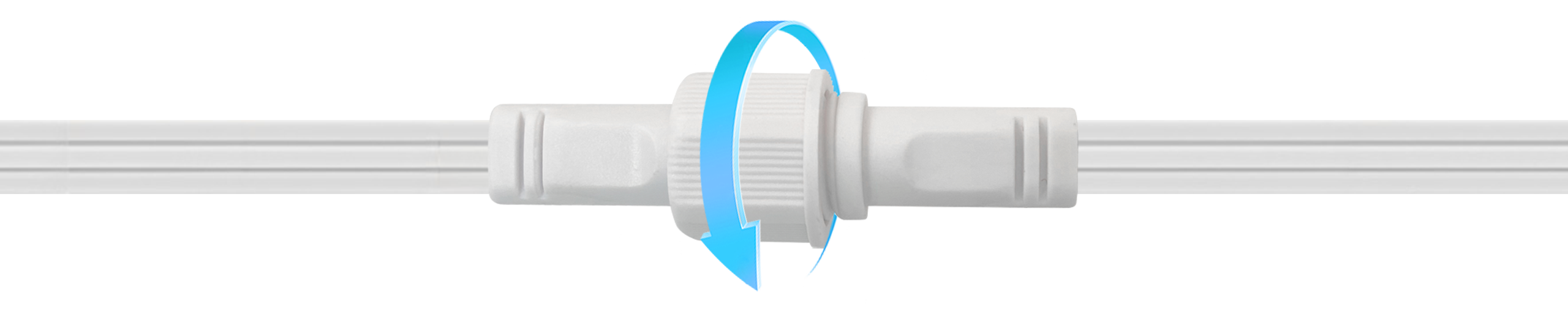

Q3: Align the arrow marks on the connectors, insert fully, and then tighten the waterproof nut clockwise.

A4: Can I connect several extension cords in series?
Q4: Yes, you can, but the total length should not exceed the recommended maximum, or the signal may weaken and some LEDs may not light up.

A5: Can the extension cord be used with T-splitter?
Q5: Yes. For multi-branch installations, use T-splitter with extension cords to ensure stable power and signal for each branch.

A6: Are the extension cords waterproof and suitable for outdoor use?
Q6: Extension cords are designed with IP67 waterproof rating and are suitable for permanent outdoor use. Always tighten the waterproof nut on connectors to prevent water ingress.

A7: What should I do if the extension cord becomes loose or has poor contact?
Q7: Check if the connectors are properly aligned and fully tightened. If needed, unplug and reconnect, ensuring there is no debris and contact is secure.
