ASAHOM Fault Detection Mode
ASAHOM Fault Detection Mode
Regular price
$29.99
Sale price
$29.99
Regular price
Unit price
per
Couldn't load pickup availability
- Package list: ASAHOM fault detection module. NOT WATERPROOF. And should only be used temporarily
- NOTE: it is only compatible with ASAHOM S1070/S1080 RGBCW permanent outdoor lights.

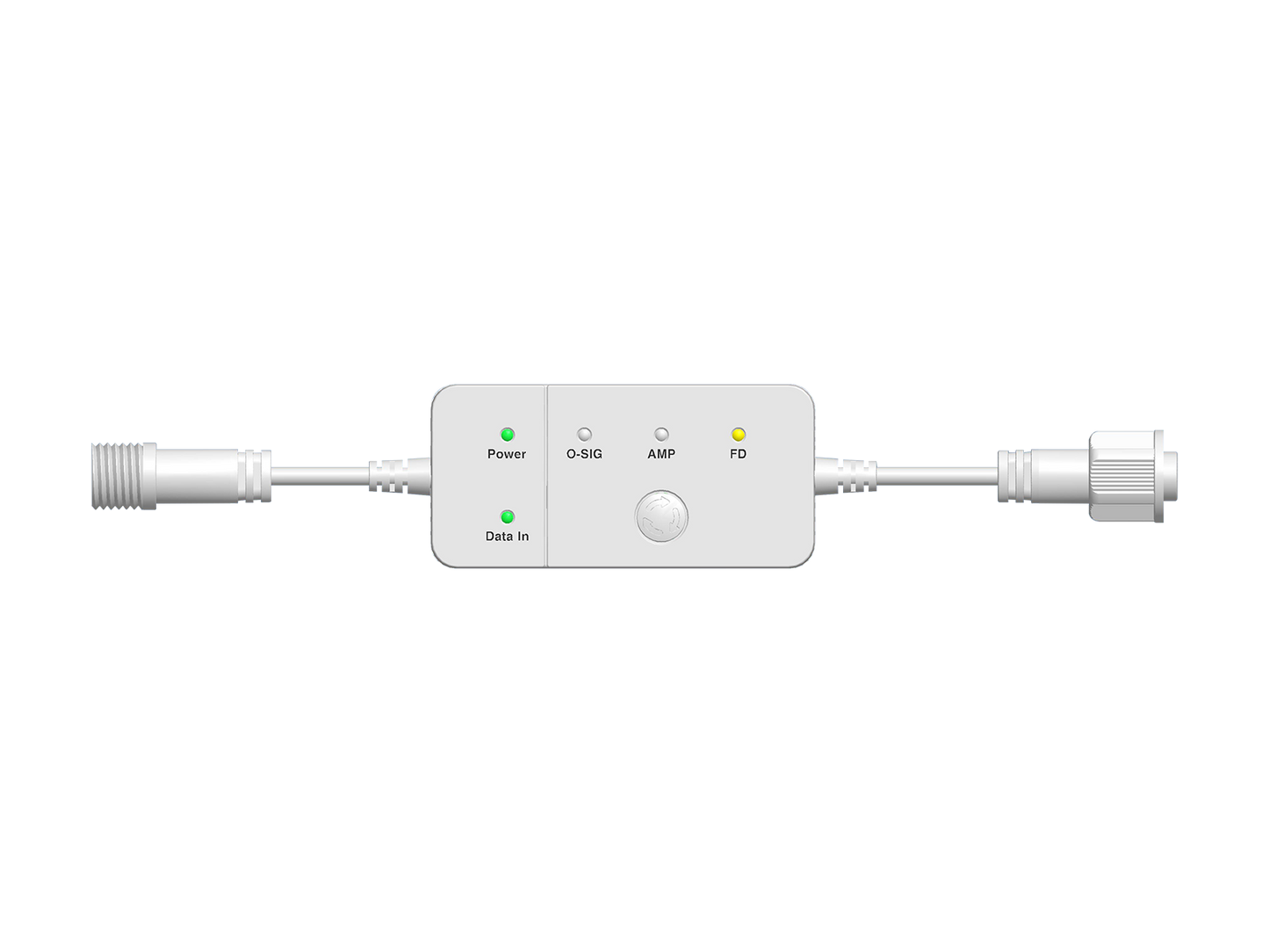

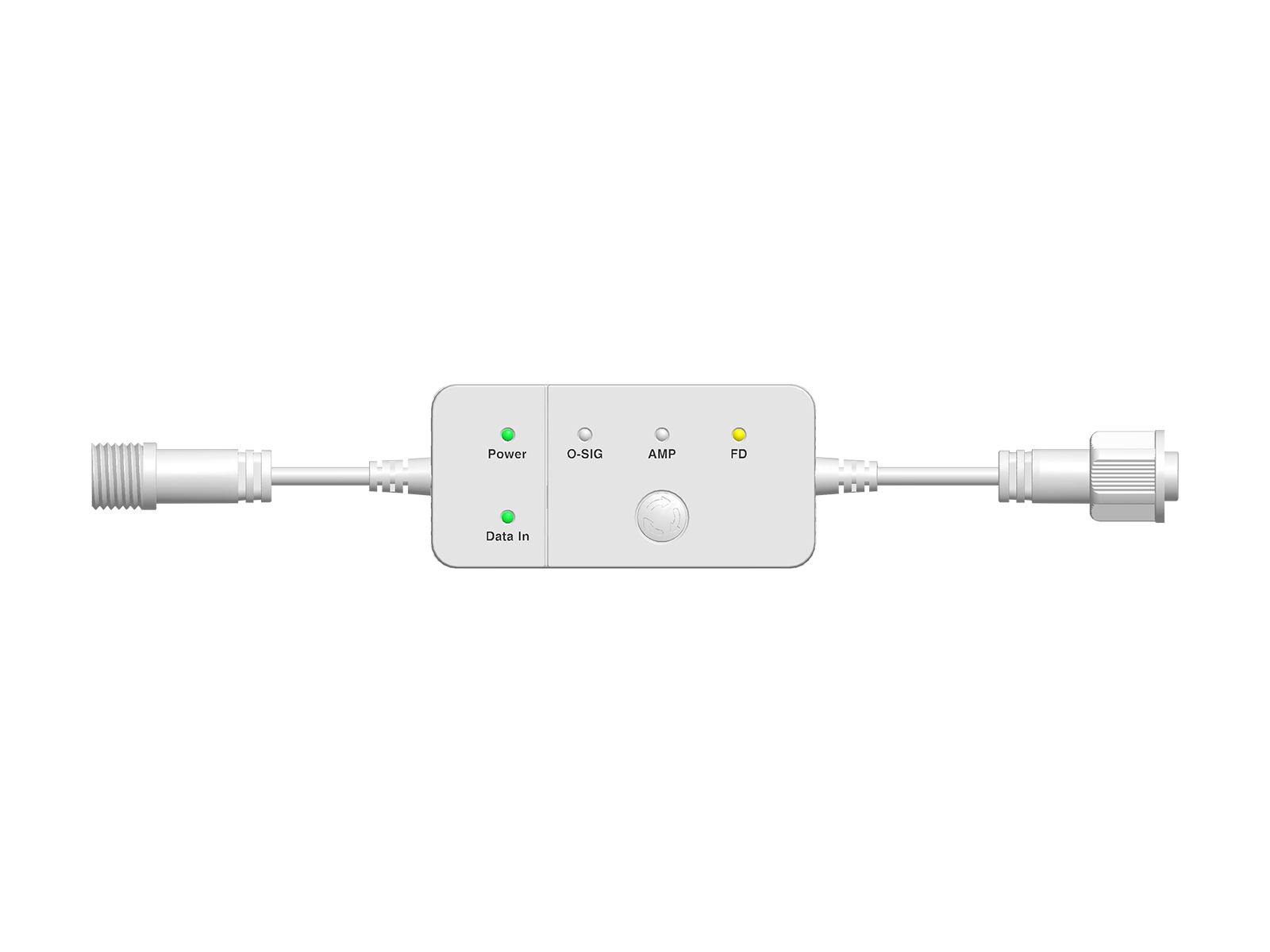

- The Fault Detection Module helps you locate issues like: power loss, signal failure, broken light sections. Think of it as a circuit tester for your light setup.
- Step-by-Step Troubleshooting: 1. Turn On Detection in App, 2. Insert the Module(eg. If section 1–4 works but section 5–8 doesn’t, insert the module between 4 and 5), 3. Check the Module Lights, 4. Press the button on the module to switch test modes.
- How to Judge: Both OFF → No power or signal detected. The issue is before the module.Move the module earlier in the light chain and repeat these steps. Power ON、Data In OFF→Power is OK, but no signal. The issue may be before the module, but you should test the lights after the module.Go to Step 4 and use FD mode to test lights after the module. Power ON、Data In ON→Power and signal detected, but lights still don’t respond. The issue may be before or after the module.Go to Step 4 and use FD mode to verify the lights after the module.
- Usage Tips: FD Mode: FD Mode sends a self-generated test signal to check if the lights after the module are working properly; O-SIG Mode: O-SIG Mode forwards the original signal from the controller to the lights; AMP Mode: AMP Mode amplifies the signal from the controller to help overcome signal loss over distance or poor wiring.
