Control Box

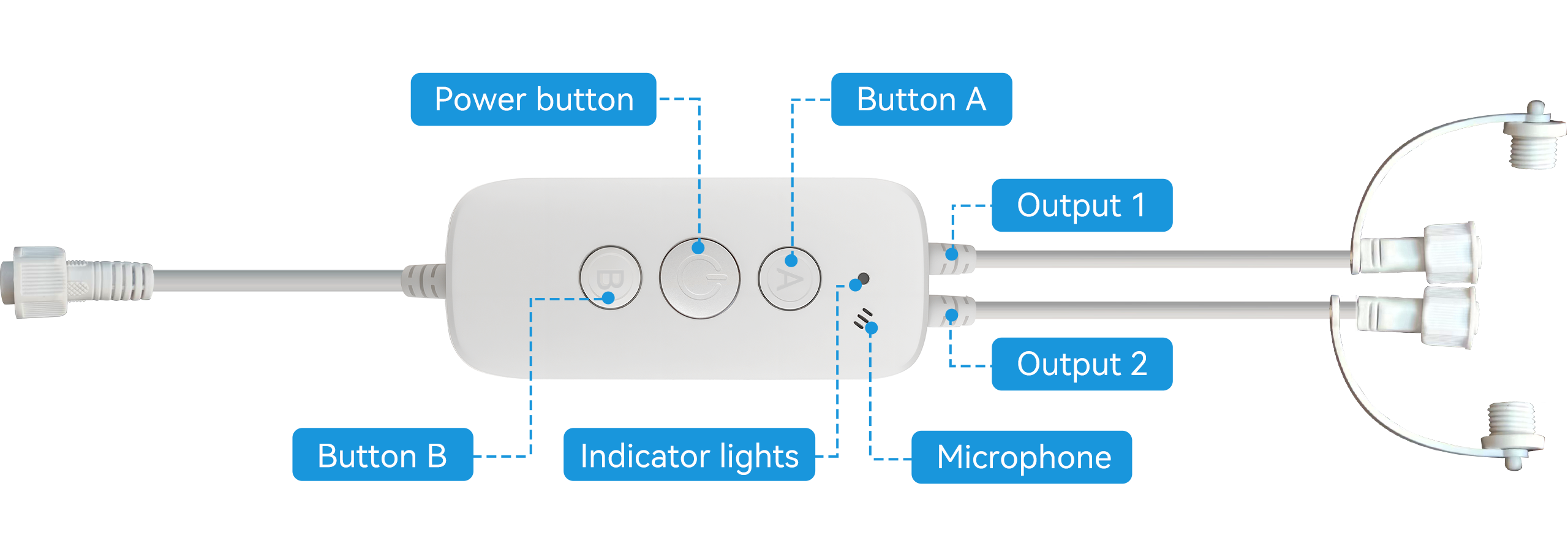

At glance
Button Functions
-
ON/OFF Button: Press briefly to turn the lights on or off. Press and hold for more than 5 seconds to restore factory settings.
-
A Button: Single press to change the color.
-
B Button: Single press to switch between different lighting modes.
Indicator Light
-
Blinking blue: Device is in pairing mode
-
Solid blue: Device is successfully connected to the network
Microphone
-
During installation, make sure not to block the microphone opening to ensure optimal sound pickup.
-
When the Audio Reactive feature is enabled and the device is picking up sound, keep the sound source as close to the microphone as possible for the best lighting response.
Dual Output
FAQs
A1: What do the blue light/indicator statuses mean on the control box?
Q1: Blinking blue: Waiting for Wi-Fi pairing or connection;
Solid blue: Device is connected to the network;
No light: Device is powered off or malfunctioning.
A2: How do I pair the control box with the mobile app?
Q2: Press and hold the pairing button (usually the ON/OFF button) for more than 5 seconds until the blue light blinks. Then, add the device in the app and follow the instructions to complete pairing.
A3: What if the control box cannot connect to Wi-Fi or the indicator does not light up?
Q3: Check if the power supply and outlet are working properly.
Try restarting the control box; reset and re-pair if necessary.
A4: What should I do if the control box is damaged？
Q4: Disconnect the power immediately and stop using it. Contact customer service for repair or replacement.
